qwop-gym
An AI for Bennet Foddy's game called "QWOP"
QWOP is simple browser-based game about running fast down a 100-meter track. The game is really hard to play and you will quickly find yourself unable to make Atlas run without falling. And it’s a perfect task for AI.
Problem Statement
The game is nearly impossible for a human to play. Few people in this world have ever been able to master it. According to the QWOP leaderboard, the fastest QWOP runner in the world can reach the finish line in 4.6 in-game seconds (45.53 real-time seconds).
Can an AI learn to play this game, and how would it perform compared to the best players in the world?
Objective
Train an AI agent that can surpass the QWOP world record.
Proposed Solution
Transform QWOP into a reinforcement learning environment and forge an AI which meets the objective.
Using the RL environment, train an AI agent and compare its performance with the results recorded by the world’s top players.
Contribute to the Gymnasium project by submitting the RL environment as an official third-party environment.
Approach
This is the section in which I break down the objective, lay out an execution plan for completing the task, describe the implementation details and talk share the challenges I have encountered along the way.
Since the project was already completed by the time I decided to create this web page, I will start by posting the results first and will leave this section blank, eventually filling it up with content whenever I find time to.
Converting QWOP into an RL environment

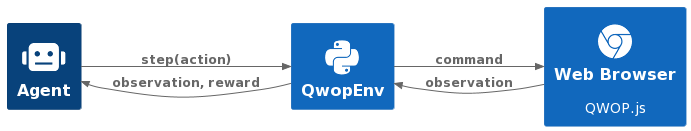

QWOP is a JavaScript game which relies on WebGL – this means it must run within a web browser and communicate to a Python backend (which handles the training).

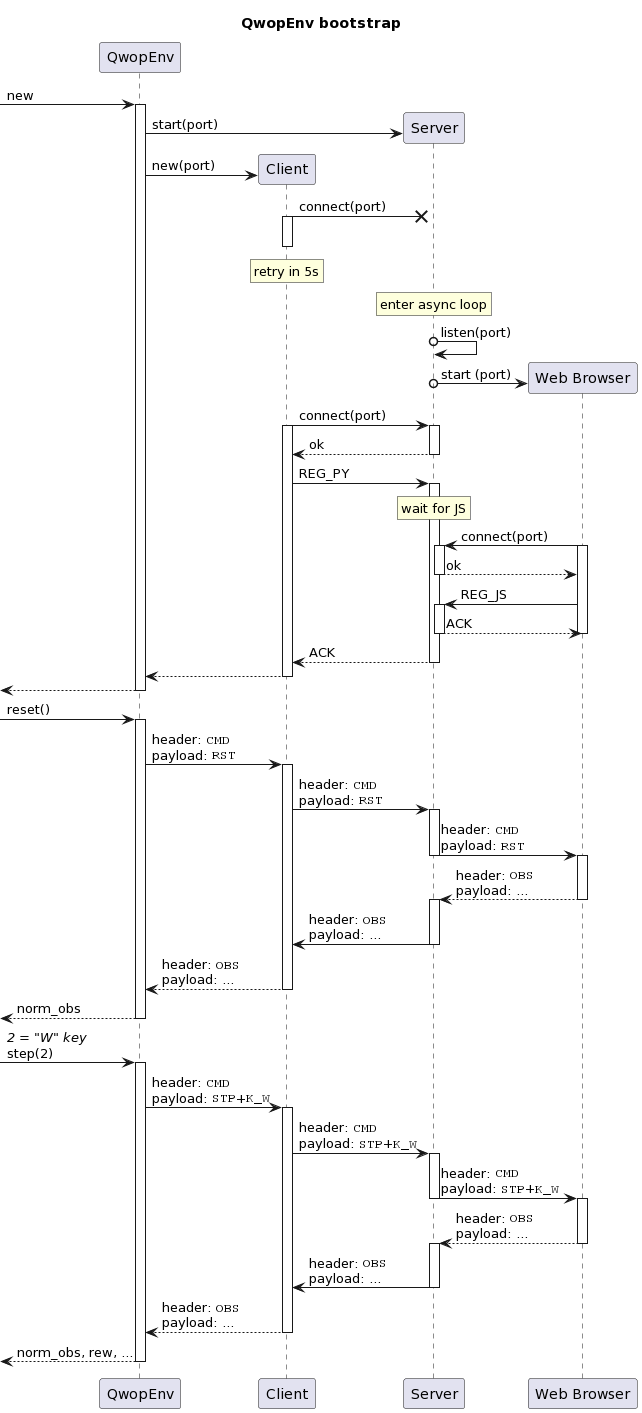

For the purpose I had to find out how to send the information from the game (i.e. the browser) to the python process. The obvious approach was some kind of HTTP protocol, so I developed a custom communication protocol for the purpose bu launching a WebSocket server and a web browser as soon as QwopEnv (as the RL env is named) is started. Both the env and the browser connect to the WebSocket server, which acts as a message proxy between the two clients - a process best described via the sequence diagram below:
Communication protocol
The env<->browser communication is governed by a protocol I designed specifically for this purpose. It consists of a 1-byte header and variable-length payload, here are some examples:
| Message description | byte 1 | byte 2 | bytes 3+ |
|---|---|---|---|
| Registration request | 0 | (id) | |
| Game command: “W” key | 3 | 0b00000101 | step (1 byte) + reward (4 bytes) + total_reward (4 bytes) |
| Game command: restart game | 3 | 0b00100001 | |
| Game command: take screenshot | 3 | 0b10000000 | |
| Game response: observation | 4 | 0b00000000 | time (4 bytes) + distance (4 bytes) + body state (60 bytes) |
| Game response: observation (game over) | 4 | 0b00000010 | time (4 bytes) + distance (4 bytes) + body state (60 bytes) |
| Game response: screenshot (JPEG) | 5 | 0b00000000 | (image data) |
| Game response: screenshot (PNG) | 5 | 0b00000001 | (image data) |
| Log | 6 | (utf-8 text) | (utf-8 text - cont.) |
| Error | 7 | (utf-8 text) | (utf-8 text - cont.) |
| Reload page | 8 |
🕹️ Actions
There are 16 discrete actions in the game, corresponding to 0, 1, 2, 3 or 4-key combinations of the below keys:
- Q (thighs 1)
- W (thighs 2)
- O (calves 1)
- P (calves 2)
Performing an action is done via the env’s step method, which expects an integer as input, so each action is mapped to a key (combination) as follows:
0=(none), 1=Q, 2=W, 3=O, 4=P, 5=Q+W, 6=Q+O, …, 15=Q+W+O+P
Some of the key combinations in the game are redundant: for example, pressing Q+W is equivalent to pressing just Q. Similarly, O+P is the same as O and so on. By default, those are still considered valid actions by QwopEnv and agents (including humans) should learn this peculiarity on their own. For the sake of reducing training times, however, removing redundant actions is made configurable in the form of the reduced_action_set env parameter, which reduces the total number of actions from 16 to just 9.
Optionally, an extra action can be added for the T key in order to immediately terminate the env - useful when playing manually to force a restart (instead of having to wait for the athlete to fall). This behaviour is controlled by the t_for_terminate env parameter, which increases the total number of actions to 17 (or 10, if reduced_action_set is also enabled).
👁️ Observations
On each step, the browser sends the following data to the RL env:
- game state (termination condition)
- time elapsed (used in reward calculations)
- distance ran (used in reward calculations)
- body state
The body state contains data about the athlete’s 12 body parts:
- Torso
- Head
- Left Arm
- Left Calf
- Left Foot
- Left Forearm
- Left Thigh
- Right Arm
- Right Calf
- Right Foot
- Right Forearm
- Right Thigh
Each of those body parts is represented by 5 floats:
| # | Description | Min | Max | Unit | Note |
|---|---|---|---|---|---|
| 0 | position (x-axis) | -10 | 1050 | decimeters | |
| 1 | position (y-axis) | -10 | 10 | decimeters | |
| 2 | angle vs horizon | -6 | 6 | radians | |
| 3 | velocity (x-axis) | -20 | 60 | ? | |
| 4 | velocity (y-axis) | -25 | 60 | ? |
This makes total of 60 floats for the body state, which are normalized and then returned as the obs (an np.ndarray((60,), dtype=np.float32)) element of the env’s step return values.
🍩 Rewards
The reward on each step is equal to:
\[R = C_s\frac{\Delta_s}{\Delta_t} - \frac{C_t}{C_f}\Delta_t\]where:
- R is the reward
- Δs is the change in distance ran since last step
- Δt is the change in time elapsed since last step
- Cs is a constant (configurable via
speed_rew_mult) - Ct is a constant (configurable via
time_cost_mult) - Cf is a constant (configurable via
frames_per_step)
💀 Termination
The env will terminate whenever the athlete:
- steps or falls beyond the 100-meter mark (considered a success)
- reaches the 105-meter mark (considered a success) *
- falls anywhere else (considered a failure)
- reaches the -10-meter mark (considered a failure)
* In rare cases, the athlete goes past the finish line without the game detecting ground contact due to a bug, so a 105m end-game condition was added.
🖼️ Rendering

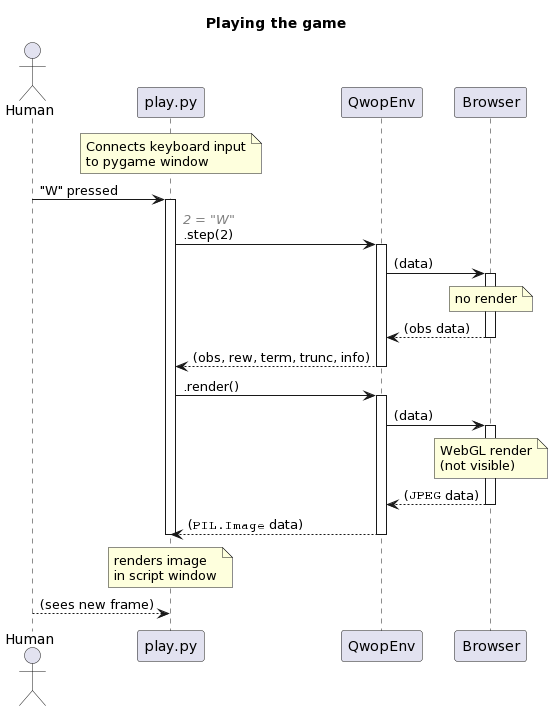

The env supports two render modes: browser and rgb_array. In both cases, a call to .render() will render a frame in the browser, but with rgb_array the frame itself is also returned as an image. This is needed when a human is playing, as this image is re-rendered in a pygame window which also receives the keyboard input. As this would result in frames being visualized twice (in both the browser and the pygame window), the configuration parameter game_in_browser is used to hide the browser part.
♻️ Resetting
This env supports two reset modes: soft and hard.
In both cases, QwopEnv instance variables are reset and the difference lies in how QWOP reset is performed.
Soft resets instruct the game engine to start a new game. Repeating the exact same actions after a soft reset may result in a different outcome.
Soft resets are lightweight, fast and unobtrusive. They are enabled by default.
For most intents and purposes, soft resets should be enough, as they provide a nearly deterministic env - a state-action will yield a predictable next state in ~99.99% of the times (empirically measured).
Hard resets will re-load the web page (QWOP.html) ie. the entire game engine is re-initialized. Repeating the exact same actions after a hard reset will result in the exact same outcome.
Hard resets are cumbersome and more obtrusive (each page reload causes a visible flicker). To enable it, pass the reload_on_reset=True keyword argument to the QwopEnv constructor.
With this reset mode, the environment becomes fully deterministic, given the step number is part of the state: an action a at state s will always yield exactly one specific state s+1.
Configuration parameters
A list of all aspects of the game I have made configurable:
| name | type | default | description | |||
|---|---|---|---|---|---|---|
browser | string | Path to the web browser binary | ||||
driver | string | Path to the chromedriver binary | ||||
render_mode | string | Supported render modes (either browser or rgb_array) | ||||
failure_cost | number | 10 | Subtracted from the reward at the end of unsuccessful episodes | |||
success_reward | number | 50 | Added to the reward at the end of successful episodes | |||
time_cost_mult | number | 10 | Multiplier for the amount subtracted from the reward at each step | |||
frames_per_step | int | 1 | Number of frames to advance per call to .step (aka. frameskip) | |||
stat_in_browser | bool | False | Display various game stats in the browser next to the game area | |||
game_in_browser | bool | True | Display the game area itself in the browser | |||
text_in_browser | string | Display a static text next to the game area in the browser | ||||
reload_on_reset | bool | False | Perform a page reload on each call to .reset (aka. “hard reset”) | |||
auto_draw | bool | False | Automatically draw the current frame on each call to .reset | |||
reduced_action_set | bool | False | Reduce possible actions from 16 to just 9 | |||
t_for_terminate | bool | False | Map an additional action to the T key for terminating the env | |||
loglevel | string | WARN | Logger level (DEBUG | INFO | WARN | ERROR) |
seed | int | Seed (must be between 0 and 2^31), auto-generated if blank | ||||
browser_mock | bool | False | Used for debugging when no browser is needed |
Results
I used different RL algorithms to train AI agents with varying levels of success. BC (Behavioural Cloning), PPO (Proximal Policy Optimization), DQN (Deep Q-Network), QR-DQN (Quantile Regression DQN) are among some of the popular RL algorithms I used throughought this experiment.
The QRDQN agent performed best and topped at 5.3s game-time after several hours of training, which would place it on 5th place on the QWOP leaderboard.

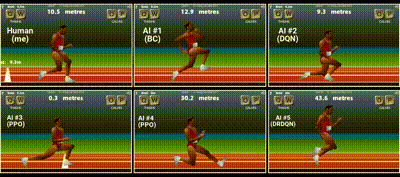

I have prepared a video which showcases the results of the qwop-gym experiment:
Conclusion
The AI showed a remarkable performance and was able to reach the finish line in 5.3 seconds, ranking among the top 5 best players in the world.
Although part of the objective (to outperform the world champion) was not met, I felt confident that it was just a matter of time until that happened given more time and effort were to be invested. The journey was very educational and armed me with confidence, experience and knowledge which I was eager to immediately put to work in new, more sophisticated RL projects instead.
